500FH 500FG Diesel Fuel Filter Water Separator, Fuel Filter Housing with Cartridge for Outboard Marine Boat Engines or Trucks Diesel Engine

Specifications:Part Number: 500FH 500FG 2010PMStyle: Fuel filter housing with Cartridge Fuel Metal Free FilterType: Full FlowMedia: CelluloseMaximum Flow Rate: 60 Gph (227 Lph)Filter Rating: 2, 10, And 30 Microns(98% at 30 microns)Maximum Pressure: 15 PSI (1.03 bar)Inlet/outlet port thread Size: M14*1.5.Installation of accessories:1. Put the small O-ring on the short silver bolt2. Then screw into 500FG.3. Insert the gasket and the hose connector ( 10mm) into the long bolt4. Adjust the angle of the hose connector ( 10mm)5. Screw the long bolt into the short silver bolt.NOTE:Not Included Installation Guide or Manual, Professional installation is recommended.Please make sure to match with your vehicle before buying.

• REPLACE PART NUMBER: 500FH, 500FG, 2010PM. Compatibility is just for reference, please confirm your OE number.
• SPECIFICATIONS: Maximum Flow Rate: 60 Gph (227 Lph). Filter Rating: 2, 10, And 30 Microns(98% at 30 microns). Maximum Pressure: 15 PSI (1.03 bar).
• FUNCTION: Filter water and impurities in the engine fuel systems, reduce mechanical wear and blockage. Provide higher flow and efficiency, easy to install.

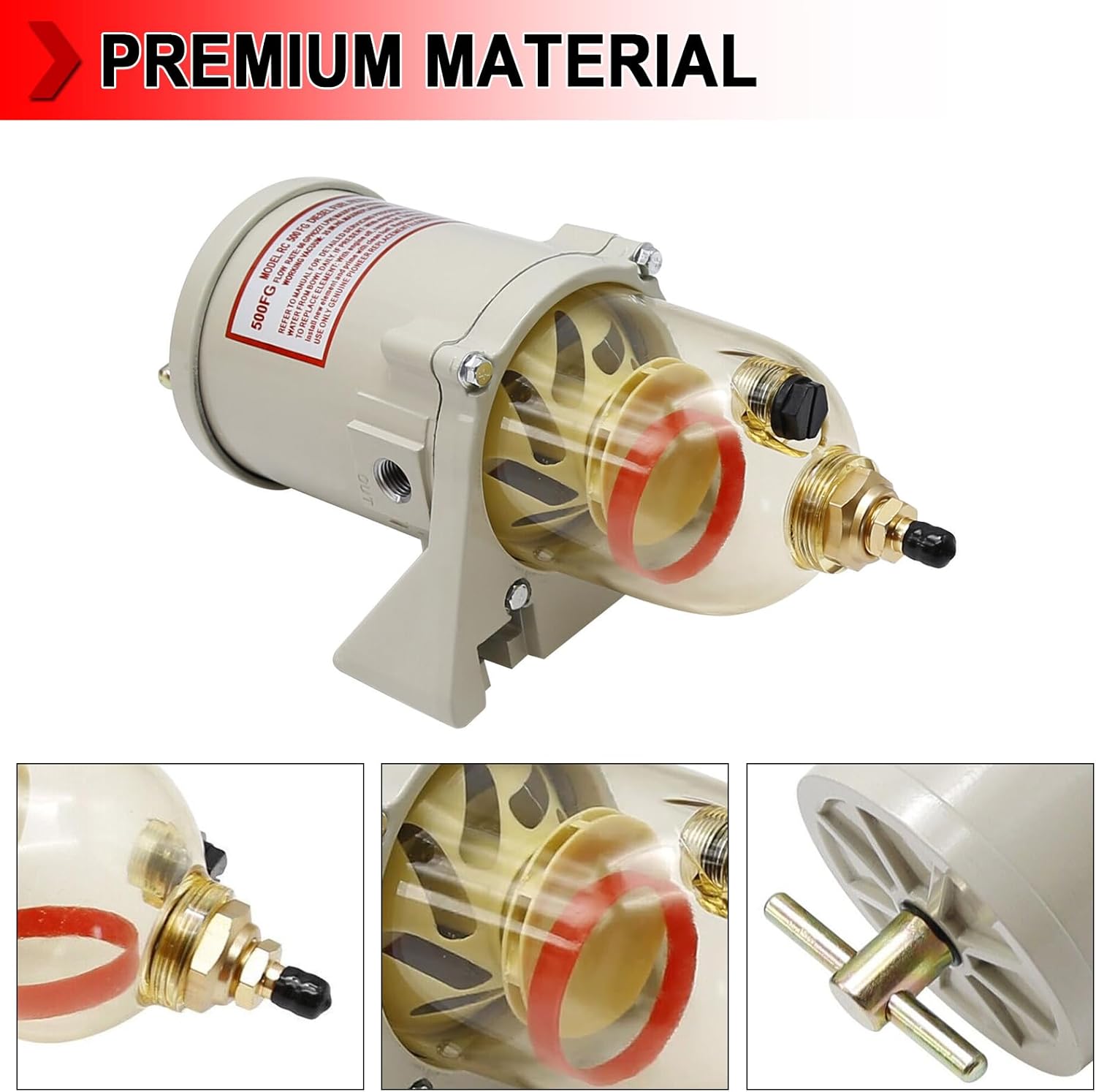

• FEATURE: Reusable clear nylon collection bowl to remove excess dirt and moisture. Protect the engine and various components from damage, and to ensure the stable operation of the engine.

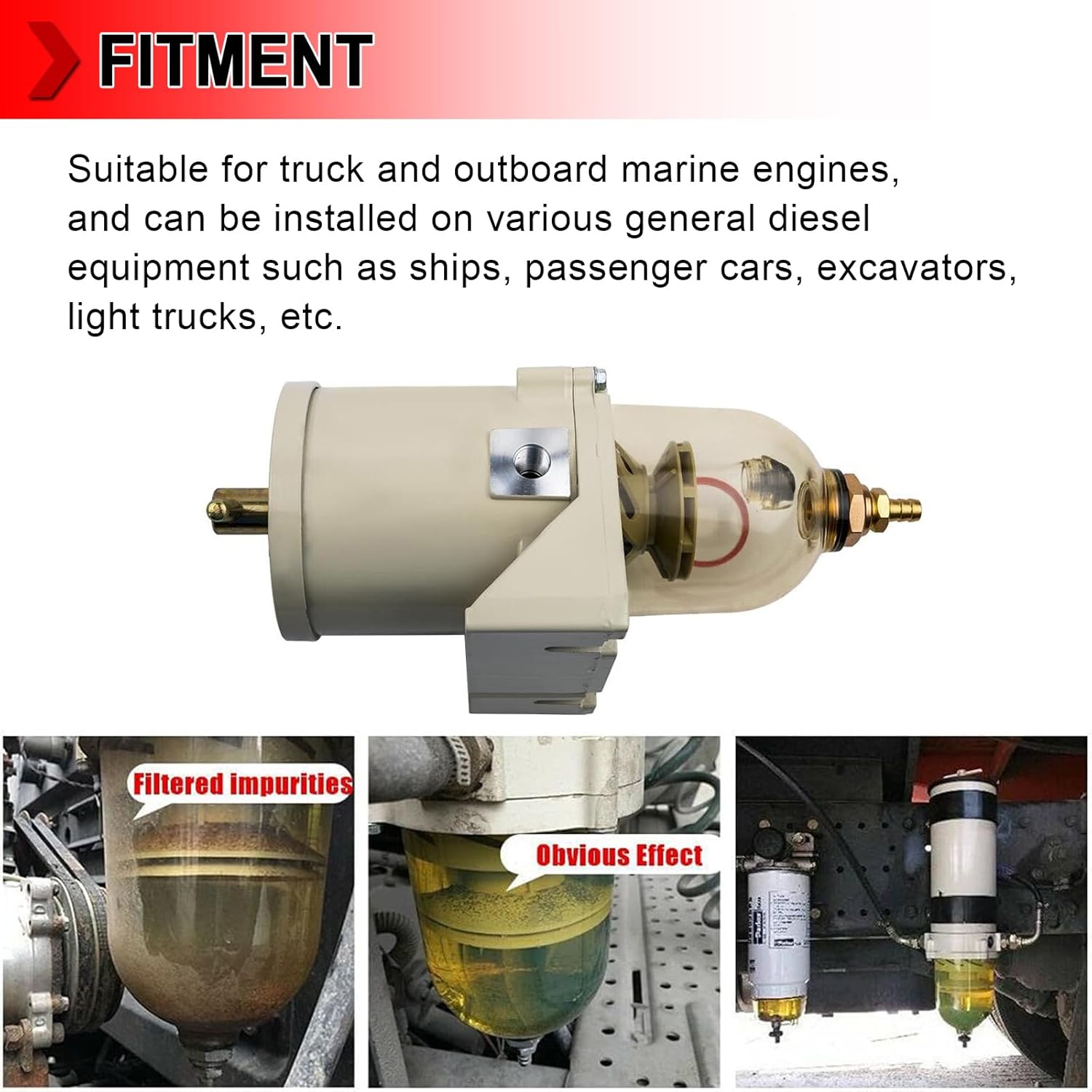

• FITMENT: 500 FH diesel fuel water separator Suitable for truck and outboard marine engines, and can be installed on various general diesel equipment such as ships, passenger cars, excavators, light trucks, etc.
